Profiles

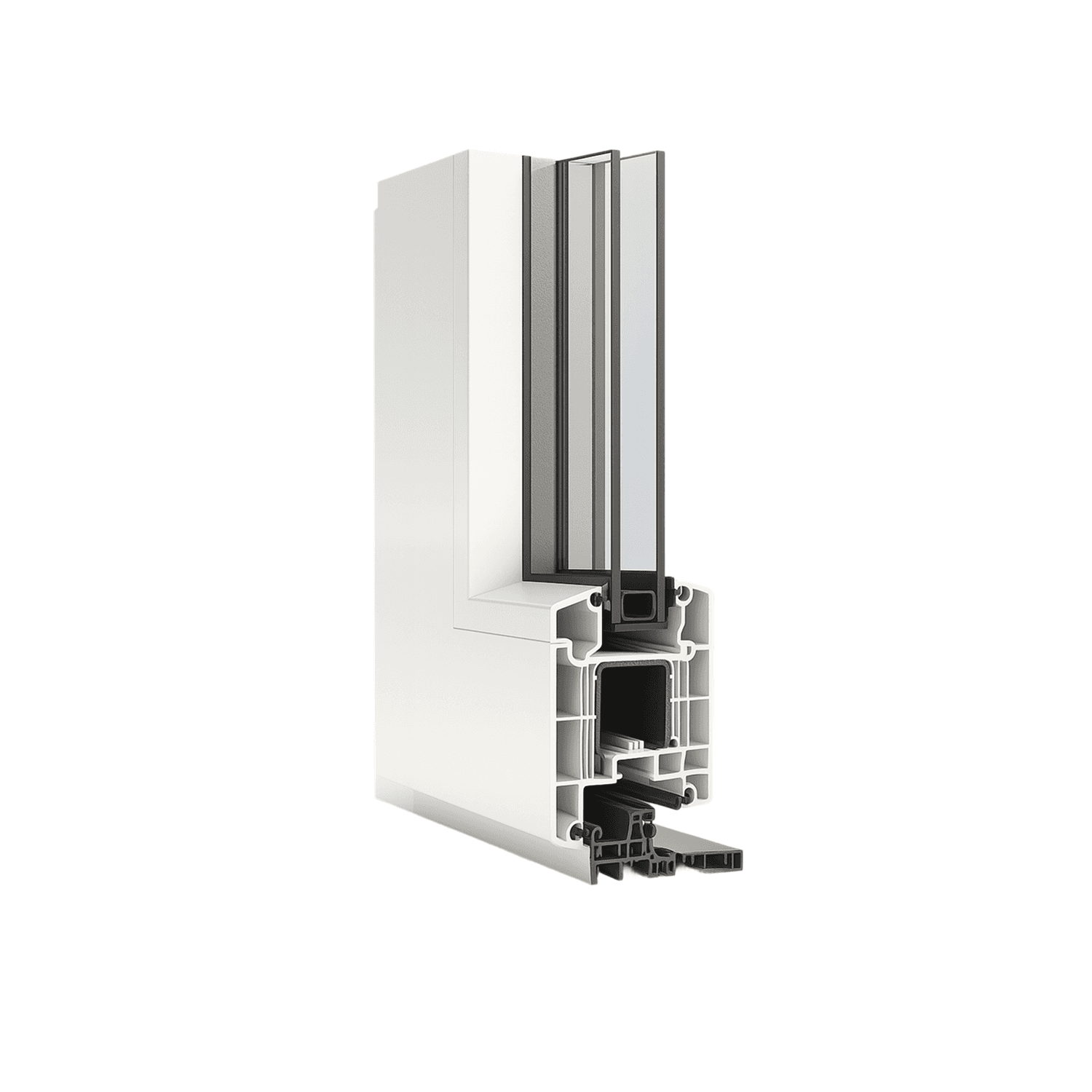

Salamander
BluEvolution 82
PVC
Profile system with construction depth: 82 mm
Frame and sash depth: 82 mm
Glazing thickness: up to 54 mm (windows)
Number of chambers: 6
Thermal insulation: Uf up to 0.92 W/m²K (MD), Uw from 0.71 W/m²K
Sound insulation: up to Rw 47 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class 9A (EN 12208)
Wind load resistance: Class C5/B5 (EN 12210)
Burglar resistance: up to RC2 (with appropriate fittings)

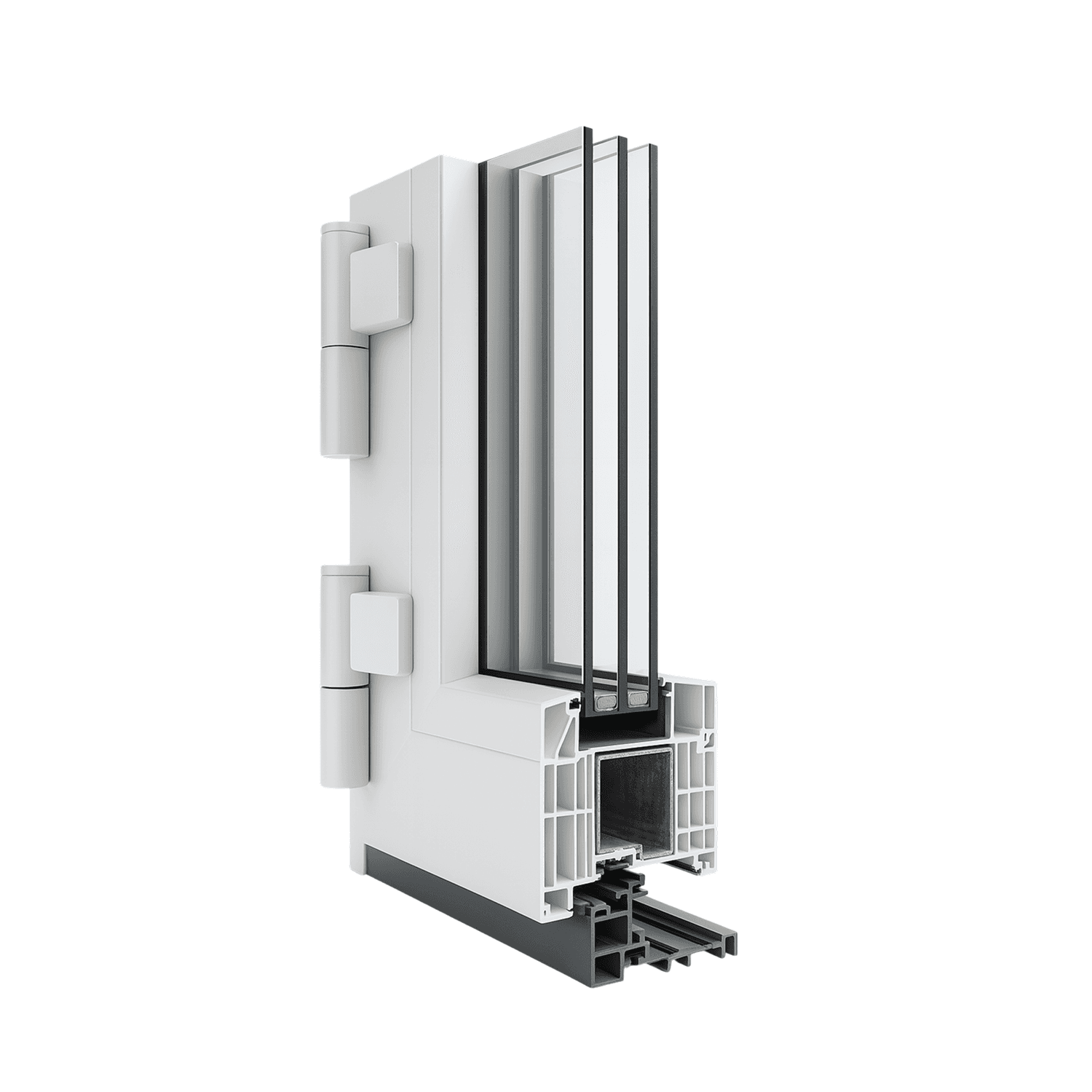

Aluplast
Ideal 4000
PVC
Profile system with construction depth: 70 mm
Frame and sash depth: 70 mm
Glazing thickness: up to 41 mm (standard unit 24 mm)
Number of chambers: 5 or 6 (depending on configuration)
Thermal insulation: Uw from 0.98 W/m²K
Sound insulation: up to Rw 44 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class 9A (EN 12208)
Wind load resistance: Class C3/B3 (EN 12210)
Burglar resistance: up to RC2 (with appropriate fittings)

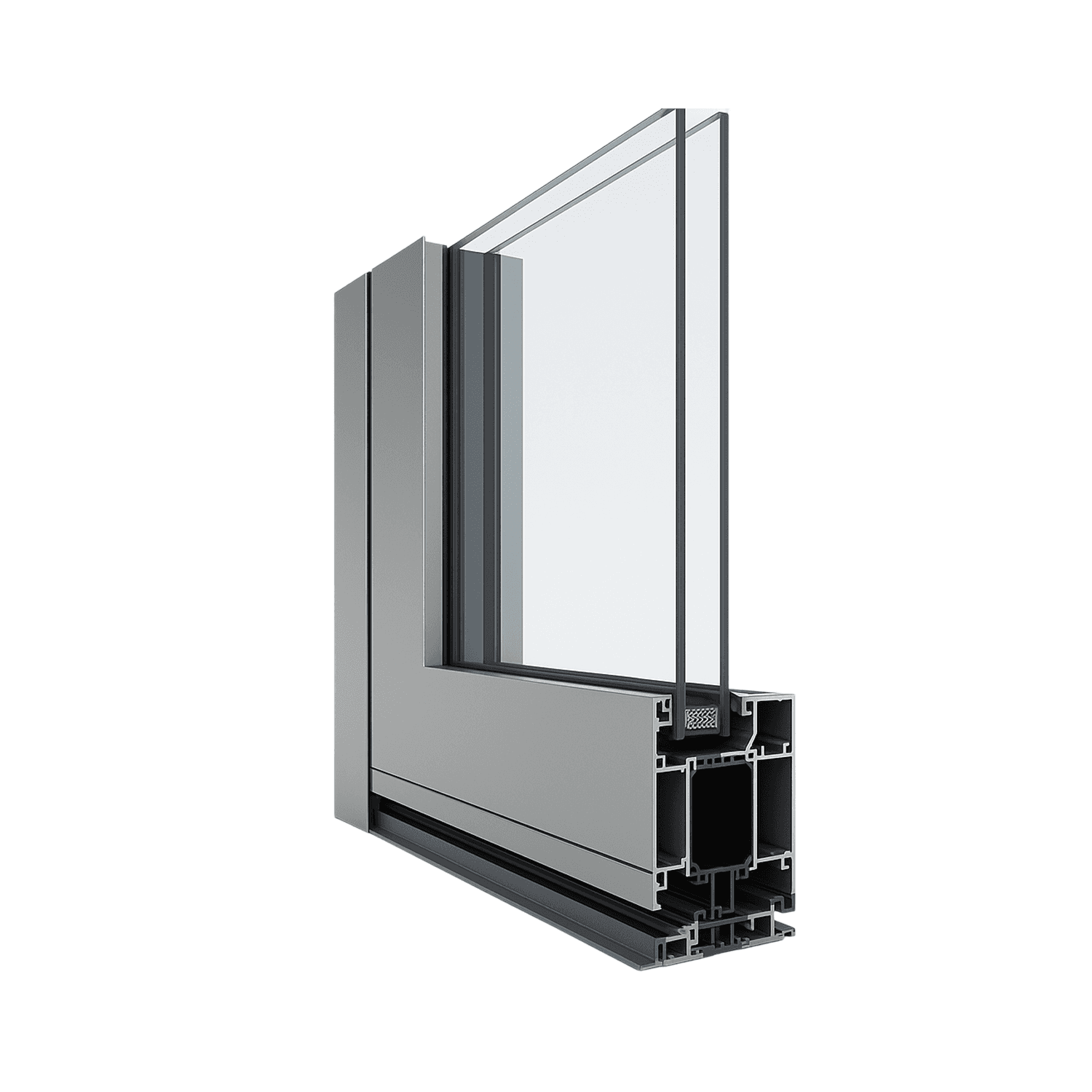

Aluprof
MB79N
Aluminum
Profile system with construction depth: 70 mm
Frame depth: 70 mm
Leaf depth: 79 mm
Glazing thickness: up to 63 mm (doors)
Number of chambers: 3 (doors)
Thermal insulation: Ud from 0.90–1.22 W/m²K
Sound insulation: up to Rw ~43 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class E900 (doors)
Wind load resistance: Class C5/B5 (EN 12210)
Burglar resistance: up to RC3 (with appropriate fittings)
