Profiles

Aluplast

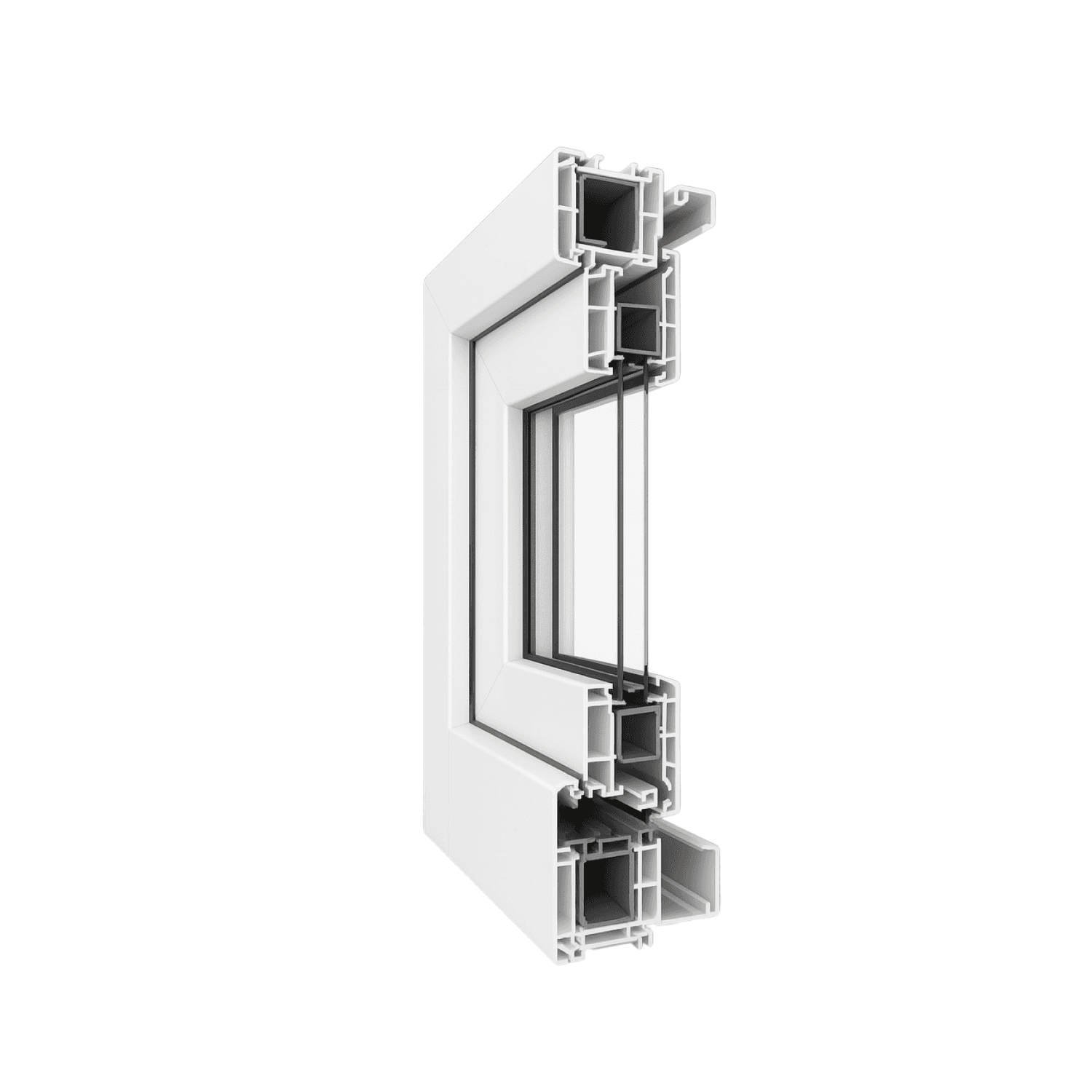

Ideal 4000
PVC
Profile system with construction depth: 70 mm
Frame and sash depth: 70 mm
Glazing thickness: up to 41 mm
Number of chambers: 5
Thermal insulation: Uf from 1.3 W/m²K, Uw from 0.9 W/m²K (depending on configuration)
Sound insulation: up to Rw 44 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class 9A (EN 12208)
Wind load resistance: Class C3/B3 (EN 12210)
Burglar resistance: up to RC2 (with appropriate fittings)

Aluprof

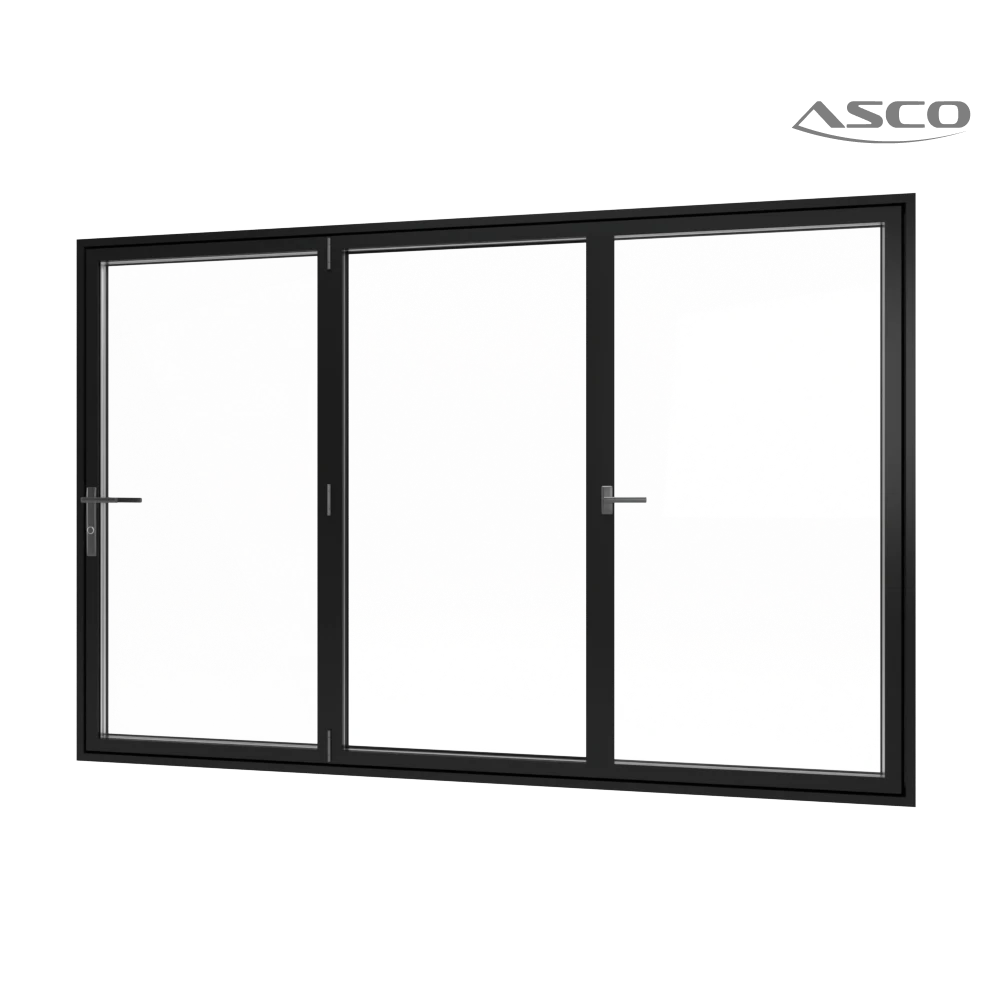

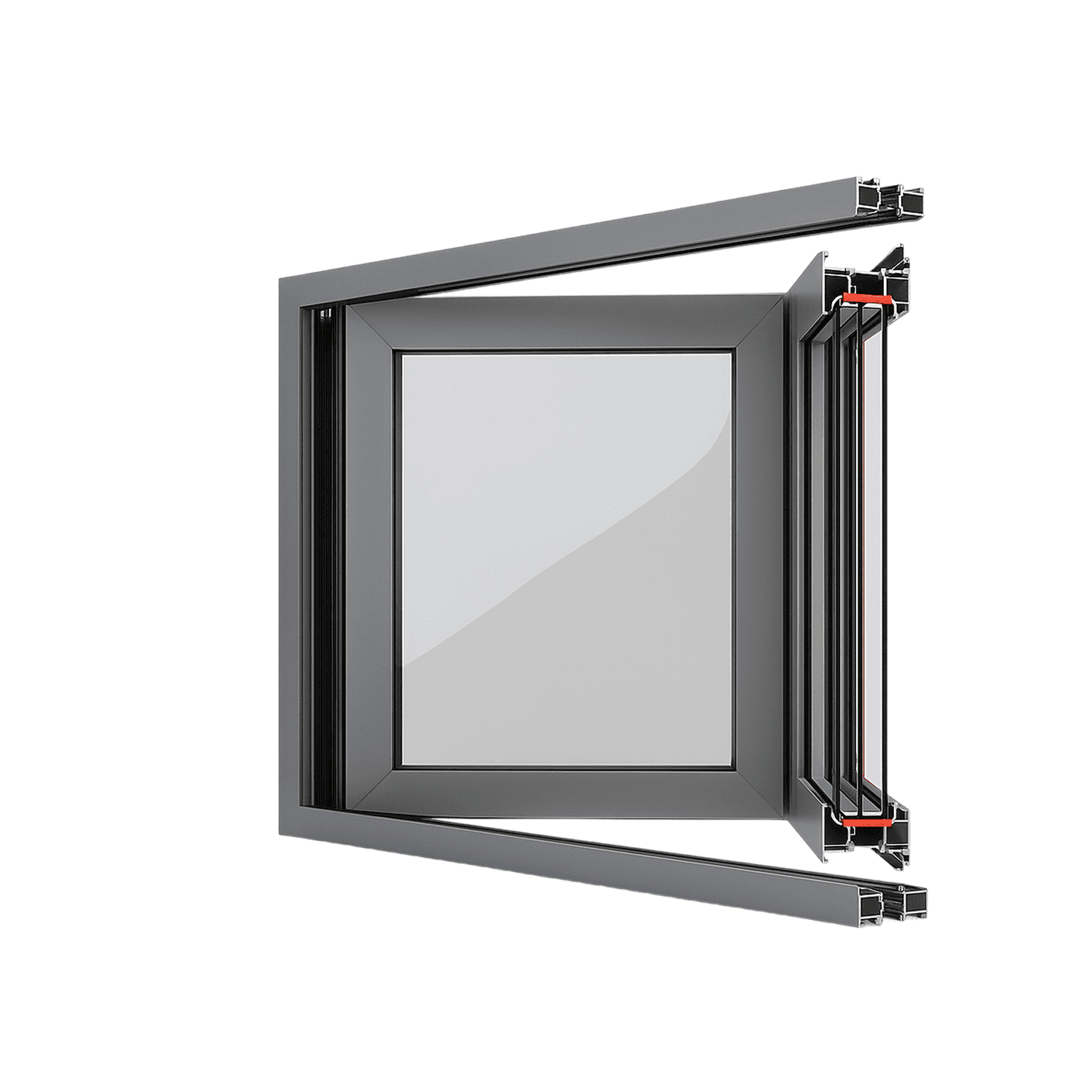

MB-86 Fold line
Aluminum
Frame depth: 86 mm
Door leaf depth: 77 mm
Number of leaves: up to 8 leaves for panoramic solutions
Central chamber: thermal barriers of 24 mm for frames and 34 mm for door leaves
Maximum leaf weight: up to 120 kg
Maximum door dimensions: height up to 3000 mm, width 700–1200 mm
Threshold options: with a rotating seal or a low threshold
Glazing range: from 13.5 mm to 61.5 mm (single- and double-chamber glass units)
Compatibility: common elements with the ALUPROF MB-86N system (profiles, seals, and accessories)
Colors & finishes
Preview popular PVC laminates and aluminum RAL colors below. Select a sample or open the full PDF palette; final color should be confirmed against a physical swatch.
Salamander PVC
46 PVC finishes, from woodgrain textures to solid matte colors. Download PDF catalog here.
Aluplast PVC
63 wood, metallic and matte PVC finish options for windows and doors. Download PDF catalog here.
Aluminum RAL colors
195 powder-coated aluminum colors from the standard RAL palette. Download PDF catalog here.
Our real projects with
Folding doors
