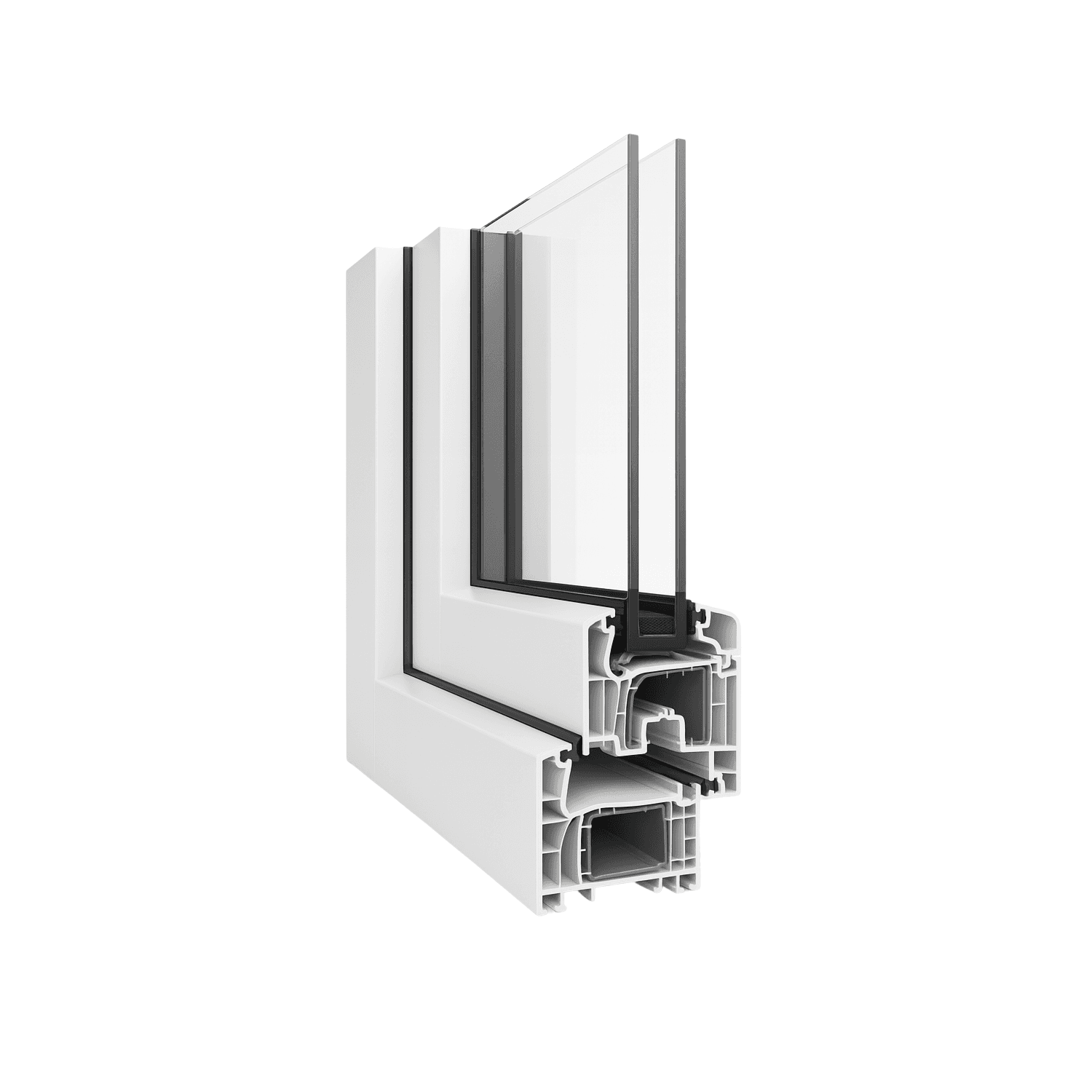

Profiles

Aluplast
Ideal 4000
PVC
Profile system with construction depth: 70 mm
Frame and sash depth: 70 mm
Glazing thickness: up to 41 mm (standard unit 24 mm)
Number of chambers: 5 or 6 (depending on configuration)
Thermal insulation: Uw from 0.98 W/m²K
Sound insulation: up to Rw 45 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class 9A (EN 12208)
Wind load resistance: Class C3/B3 (EN 12210)
Burglar resistance: up to RC2 (with appropriate fittings)

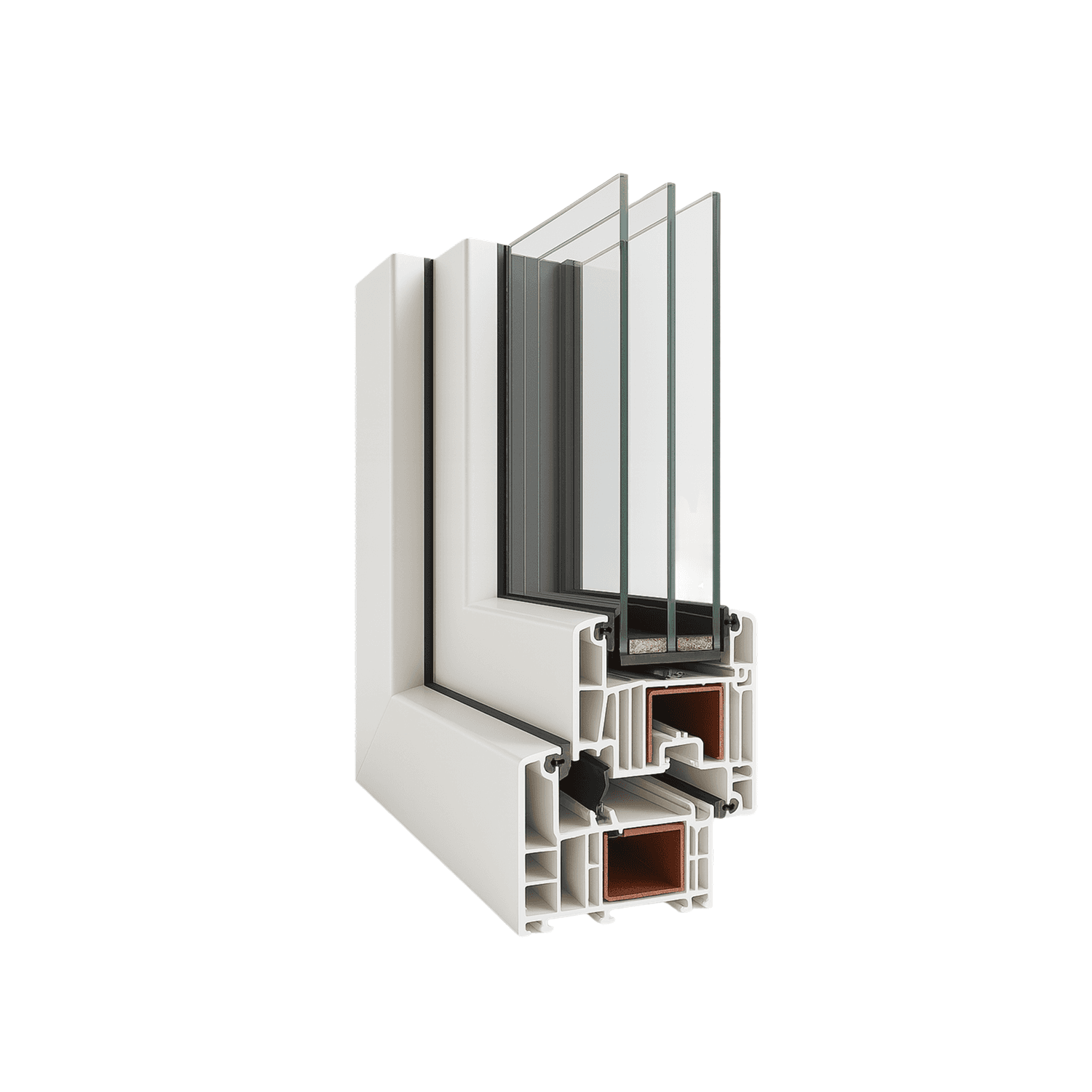

Salamander
BluEvolution 82
PVC
Profile system with construction depth: 82 mm
Frame and sash depth: 82 mm
Glazing thickness: up to 52 mm (standard unit 24 mm)
Number of chambers: 6
Thermal insulation: Uw from 0.74 W/m²K
Sound insulation: up to Rw 45 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class 9A (EN 12208)
Wind load resistance: Class C3/B3 (EN 12210)
Burglar resistance: up to RC2 (with appropriate fittings)

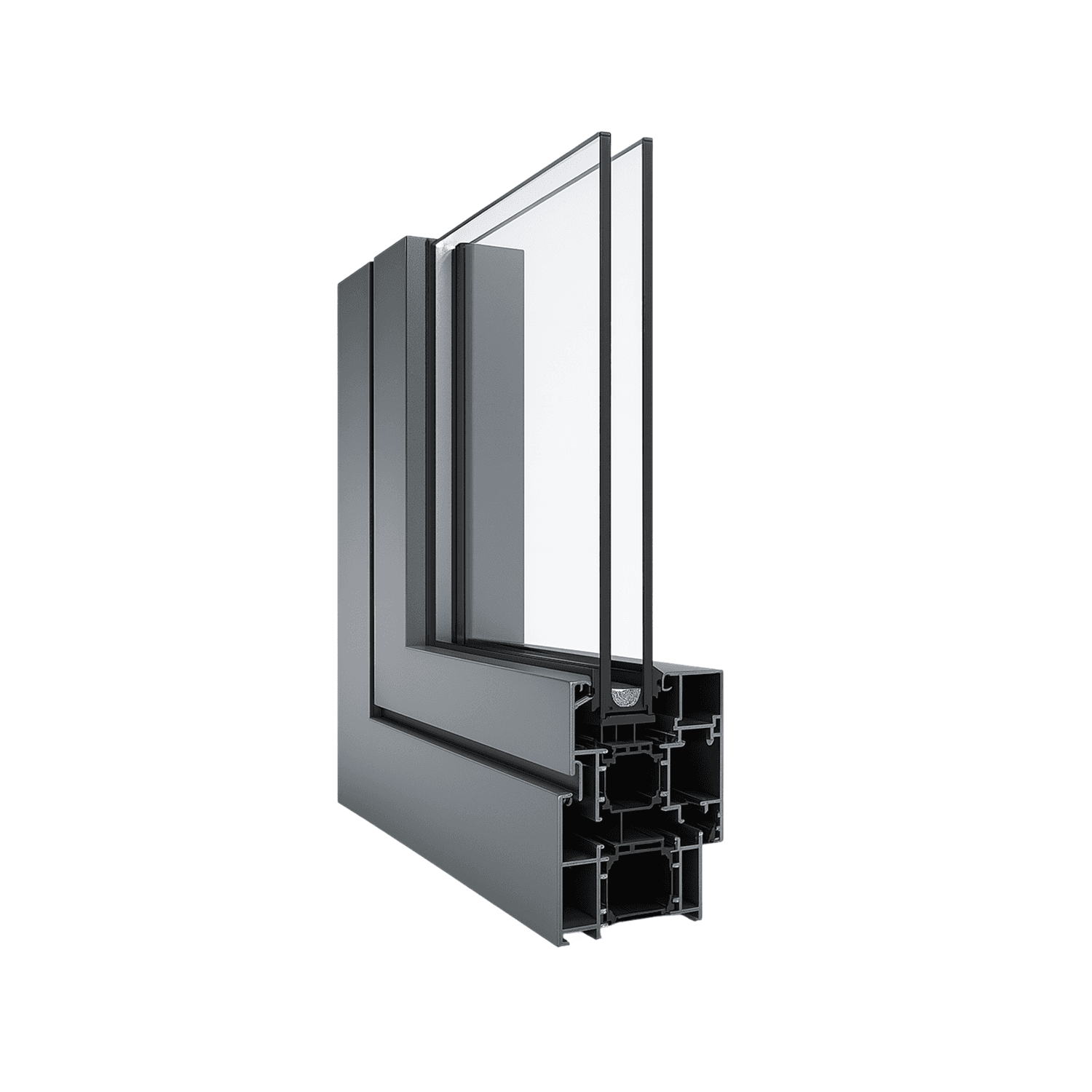

Aluprof
MB79N
Aluminum
Profile system with construction depth: 70 mm
Frame depth: 70 mm
Sash depth: 79 mm (windows), 70 mm (doors)
Glazing thickness: up to 63 mm (windows), up to 54 mm (doors/fixed)
Maximum window sash size (Tilt & Turn): height up to 2700 mm, width up to 1700 mm
Maximum door sash size: height up to 2800 mm, width up to 1400 mm
Thermal insulation: Uw from 0.64 W/m²K
Sound insulation: up to Rw 45 dB
Air permeability: Class 4 (EN 12207)
Watertightness: Class E1200 (EN 12208)
Wind load resistance: Class C4/B4 (EN 12210)
Burglar resistance: up to RC3 (depending on configuration)
